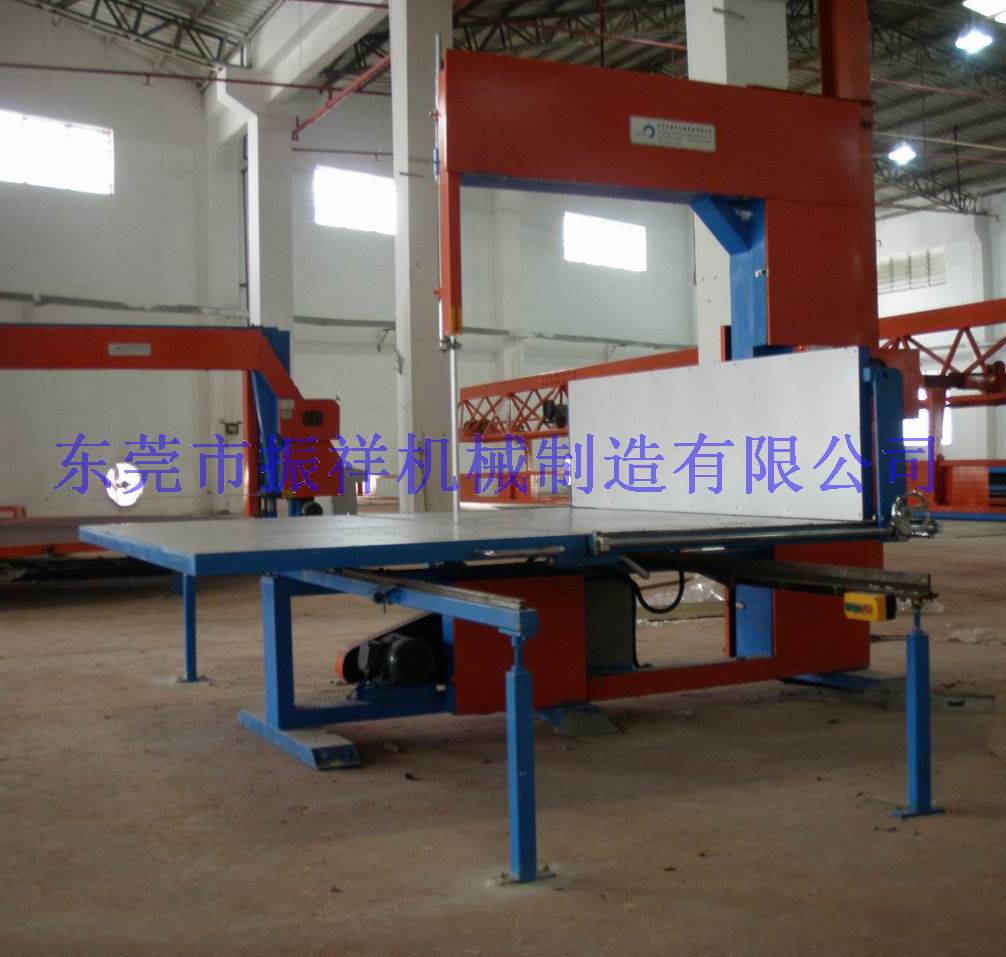

This machine is mainly used for foam vertical cutting, and it also can process all kinds of EVA, EPE, packing materials and paper etc. Easy to operate and cutting precision.
|
Model |
ZXLQ-4L(Middle) |
ZXLQ-4L(Big) |
|
Inside worktable size |
W1320*L2290mm |
W1720*L2290mm |
|
Outside worktable size |
W1200*L2290mm |
W2000*L2290mm |
|
Cutting thickness |
3~ mm |
3~ mm |
|
Cutting height |
H800/1200mm |
H800/1200mm |
|
Blade length |
7320mm/8100mm |
8100mm/8900mm |
|
Total power |
1.74Kw |
|
|
Machine weight |
1300Kg |
1500Kg |
|
Machine external size |
L4500*W4000*H2550mm |
|
